The Greatest Banned Innovations in Formula 1 History

Formula 1 has always been the pinnacle of motorsport technology, where engineers push the limits of science and creativity in search of even the smallest performance edge. In such a fiercely competitive environment, innovation is inevitable — but sometimes, the innovations are so effective that they disrupt competitive balance, compromise safety, or exploit loopholes in ways the FIA never anticipated.
When that happens, the governing body steps in, banning the concept for the “greater good” of the sport.

Here’s a look back at some of the most brilliant — and controversial — Formula 1 innovations that were outlawed, forever shaping the technical landscape of the sport.

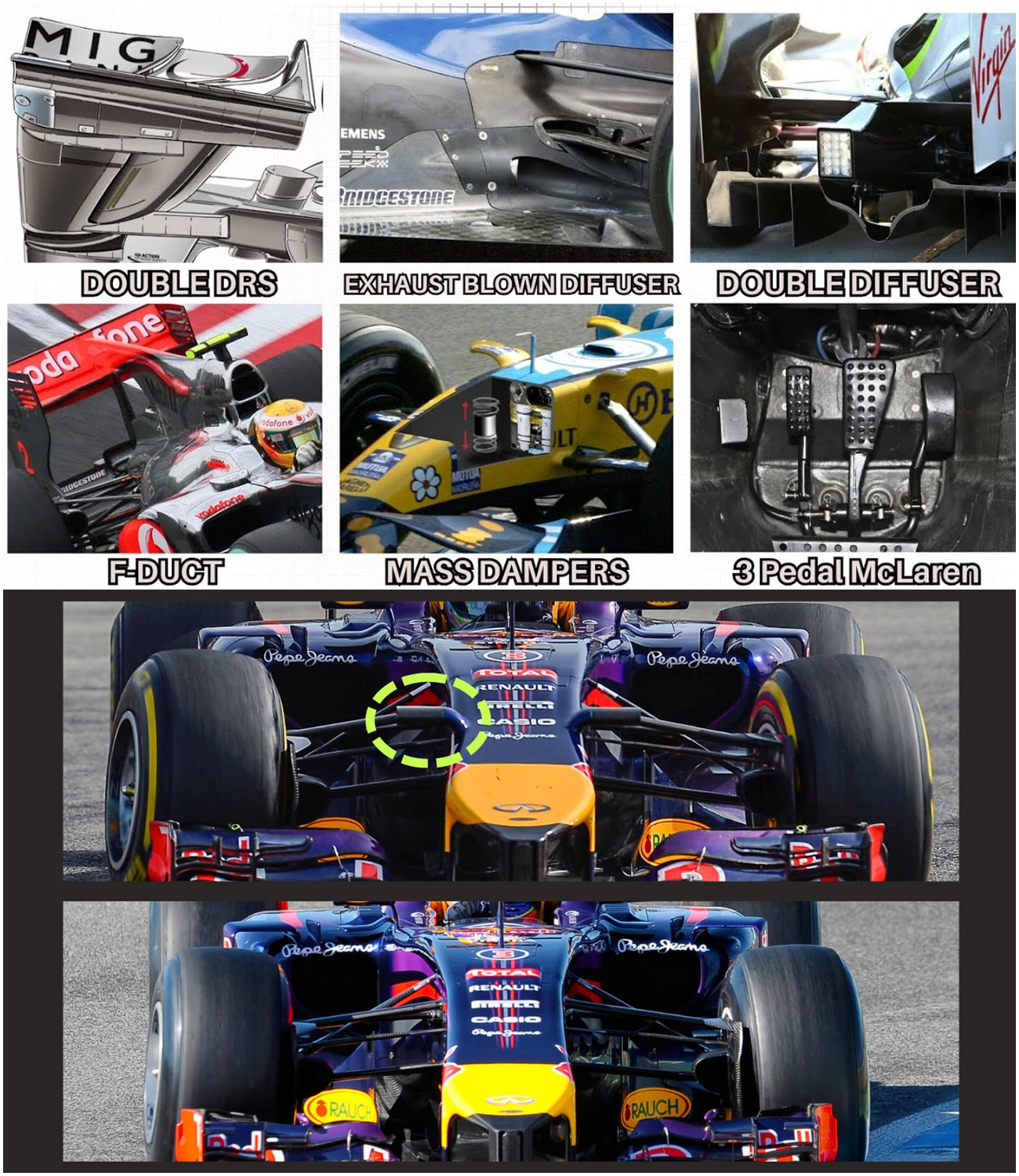

1. McLaren’s F-Duct (2010)

In 2010, overtaking was far more difficult than it is today. The Drag Reduction System (DRS) did not yet exist, and aerodynamic wake made it hard for drivers to close in on rivals. Enter McLaren’s F-Duct — a clever driver-operated system that could stall the rear wing for extra straight-line speed without breaking the rules.

The idea was deceptively simple: an air intake, subtly positioned near the “F” in Vodafone’s logo, fed airflow through internal channels. By blocking a cockpit vent with their knee, drivers could redirect air to the rear wing, disrupting airflow and reducing drag.
The result? A significant top-speed boost for overtaking or defending.

While rival teams like Mercedes and Red Bull quickly tried to copy the concept, McLaren’s execution was unmatched. The FIA banned the F-Duct for 2011, citing safety concerns and escalating development costs — but its spirit lived on in the introduction of DRS that same year.

2. Mercedes W03’s Double DRS (2012)

Two years later, Mercedes revived the idea of manipulating airflow to gain speed — but this time, they went further. Their 2012 W03 featured a Double DRS system that stalled both the rear and front wings when DRS was activated.

When the rear wing flap opened, small inlets in the endplates channeled air through the chassis to the front wing pylons, stalling the front wing and slashing drag at both ends of the car. The result was blistering straight-line performance, especially in qualifying.

While it helped Nico Rosberg secure Mercedes’ first win since 1955 at the Chinese Grand Prix, the system was short-lived. It was banned for 2013, as it added weight, limited front wing development, and — perhaps most importantly — made other teams nervous about the potential performance ceiling.

3. Renault’s Mass Damper (2005–2006)

Mass dampers are usually found in skyscrapers to counteract sway in high winds. In 2005, Renault installed one inside the nose of its R25 Formula 1 car to stabilize the front end over bumps and during cornering.

The device — a 5 kg weight suspended between two springs — moved to counteract chassis vibrations, improving grip and driver confidence. Fernando Alonso and Giancarlo Fisichella enjoyed such a benefit that insiders estimated the device could be worth over a second per lap.

Renault won both championships in 2005 and began 2006 strongly — until rivals protested at the German Grand Prix. The FIA agreed, banning the mass damper on grounds that it constituted a moveable aerodynamic device.

4. Brawn GP’s Double Diffuser (2009)

When new aerodynamic rules came into force for 2009, most teams struggled to recover lost downforce. But Brawn GP — inheriting a design from Honda’s final F1 project — found a loophole. While the regulations specified where the diffuser could start on the floor of the car, they didn’t cover the vertical sidewalls. By cutting slots into these walls, Brawn created a secondary airflow path that effectively extended the diffuser forward, generating massive extra downforce.

The result was devastating. Jenson Button won six of the first seven races, and while rivals like Toyota and Williams adopted similar designs, Brawn’s head start secured both championships. The double diffuser was banned for 2011.

5. McLaren’s Third Pedal Brake Steer (1997–1998)

In 1997, F1 photographer Darren Heath noticed McLaren’s brake discs glowing mid-corner — unusual since braking typically happens before turn-in. His curiosity uncovered one of McLaren’s most ingenious tricks: a hidden third pedal that allowed the driver to brake just one rear wheel.

By selectively applying brake pressure to either the left or right rear wheel mid-corner, McLaren drivers could eliminate understeer and sharpen turn-in. The system was cheap, simple, and worth up to half a second per lap.

The FIA deemed it legal at first, but rival teams lobbied for its removal. It was banned early in 1998, after McLaren had developed an even more advanced, corner-by-corner selectable version.

6. Red Bull’s Exhaust-Blown Diffuser (2010–2011)

In 2010, Red Bull reimagined how exhaust gases could be used aerodynamically. By routing the exhaust outlets low and toward the diffuser, they created a high-speed airflow that sealed the diffuser edges and boosted downforce.

Working with engine supplier Renault, Red Bull developed “off-throttle blowing,” using engine maps to keep exhaust gases flowing even when the driver wasn’t accelerating. This meant the diffuser remained effective through all phases of a corner.

The FIA tried to limit the practice in 2011 with new exhaust placement rules — but teams found workarounds, and the battle of ingenuity continued until a more definitive ban came in 2012. Even then, Adrian Newey’s Red Bull managed to partially recreate the effect in 2013.

Innovation vs. Regulation

What’s striking about these innovations is how they each exploit grey areas in the regulations. Formula 1’s technical rules are vast, but no document can anticipate every possible interpretation. For engineers, the challenge is to find performance within the letter — if not the spirit — of the rules.

When a new concept appears, the FIA must decide whether it’s within the acceptable bounds of fair competition. If it’s judged too dangerous, too expensive, or too difficult for all teams to replicate, it’s often banned — sometimes mid-season.

Legacy of the Outlawed Designs

Though these innovations were ultimately outlawed, their influence lingers.

The F-Duct inspired the modern DRS.

Lessons from the Double DRS and exhaust-blown diffuser continue to inform aerodynamic thinking.

The double diffuser reshaped the way teams interpret the rulebook, sparking more aggressive exploitation of loopholes.

And perhaps most importantly, they serve as reminders that in Formula 1, creativity and lateral thinking can be as decisive as driver skill.

Formula 1 thrives on innovation, but it also needs rules to maintain safety and competitive balance. Every time a groundbreaking idea is banned, it’s both an end and a beginning — an end to one chapter of ingenuity, and the start of another, as teams search for the next performance breakthrough hiding between the lines of the regulations.
